法蘭倒置桶式蒸汽疏水閥管道飽和蒸汽的性質

更新時間：2021-7-5 信息來源：法蘭倒置桶式蒸汽疏水閥管道飽和蒸汽的性質

法蘭倒置桶式蒸汽疏水閥管道中未經過熱處理的蒸汽稱為飽和蒸汽，飽和蒸汽是在一個大氣壓下，溫度為100度的蒸汽，溫度不能再升高，是飽和狀態下的蒸汽。根據壓力、飽和溫度、比容、密度、比焓來了解飽和蒸汽的性質。法蘭倒置桶式蒸汽疏水閥管里飽和蒸汽由氣體分子之間的熱運動現象造成的。在飽和狀態下的液體稱為飽和液體，其蒸汽稱為干飽和蒸汽（也稱飽和蒸汽）。它是無色、無味、不能燃燒又無腐蝕性的氣體。

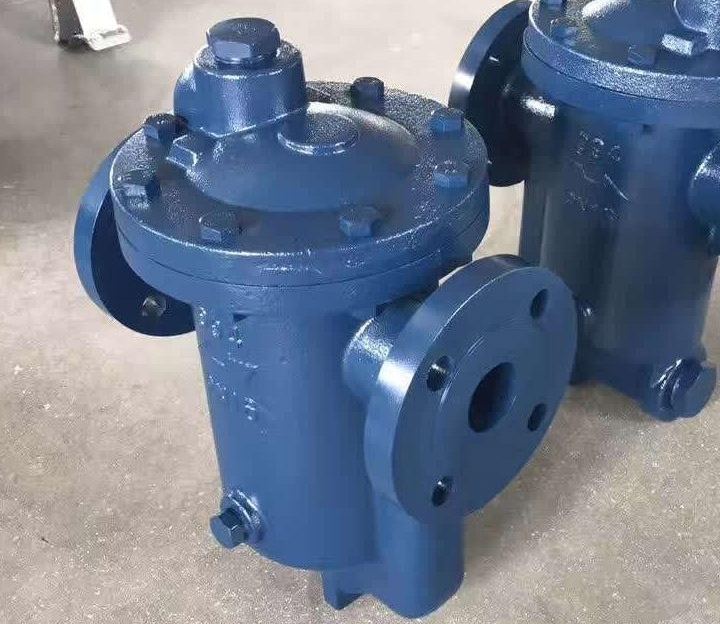

CS45法蘭倒置桶式蒸汽疏水閥- 上海昆煉閥門制造有限公司

法蘭倒置桶式蒸汽疏水閥管道飽和蒸汽的性質

壓力		飽和(沸騰)溫度t/℃	比容/(m3/kg)		密度/(kg/m3)	比焓/(J/kg)
P絕對/Mpa	h/mmHg		飽和水υ′	飽和蒸汽υ″	飽和蒸汽γ	擁有熱量		蒸發熱(蒸汽的潛熱)r=i″-i′
P絕對/Mpa	h/mmHg		飽和水υ′	飽和蒸汽υ″	飽和蒸汽γ	飽和水i′	飽和蒸汽i″	蒸發熱(蒸汽的潛熱)r=i″-i′
0.001	7.36	6.7700	0.0010001	131.6	0.0076	28177.164	2512498.6	2484321.5
0.002	14.71	17.202	0.0010013	68.28	0.0147	72180.432	2531757.9	2459577.5
0.003	22.07	23.771	0.0010027	46.50	0.0215	99603.972	2543481	2443877.1
0.004	29.42	28.641	0.0010040	35.43	0.0282	119951.82	2552273.2	2432321.4
0.005	36.78	32.55	0.0010052	28.70	0.0348	136280.34	2559390.8	2423110.5
0.006	44.13	35.82	0.0010064	24.17	0.0414	149929.3	2565252.3	2415323
0.007	51.49	38.66	0.0010074	20.90	0.0478	161777.95	2570276.5	2408498.6
0.008	58.84	41.16	0.0010083	18.43	0.0542	172244.95	2574882	2402637.1
0.009	66.20	43.41	0.0010093	16.50	0.0606	181623.38	2579068.8	2397445.5
0.010	73.50	45.45	0.0010101	14.94	0.0669	190122.58	2582418.2	2392295.7
0.012	88.27	49.05	0.0010117	12.58	0.0796	205153.2	2589117.1	2383963.9
0.014	103	52.17	0.0010131	10.89	0.0918	218216.01	2594141.2	2375925.2
0.016	117.7	54.93	0.0010144	9.602	0.1041	229729.71	2599165.4	2369435.7
0.018	132.4	57.41	0.0010157	8.597	0.1163	240112.98	2603352.2	2363239.3
0.020	147.1	59.66	0.0010169	7.787	0.1284	249533.28	2607120.3	2357587.1
0.022	161.8	61.73	0.0010180	7.121	0.1404	258199.95	2610888.4	2352688.5
0.026	191.2	65.43	0.0010201	6.088	0.1643	273691.11	2617587.3	2343896.2
0.030	220.7	68.67	0.0010220	5.323	0.1878	287214.48	2623030.2	2335815.8
0.040	294.2	75.41	0.0010261	4.065	0.2462	315475.38	2634334.5	2318859.2
0.050	367.8	80.86	0.0010296	3.299	0.3030	338335.3	2643545.5	2305210.2
0.060	441.3	85.45	0.0010327	2.781	0.3596	357594.58	2651081.7	2293487.2
0.070	514.9	89.45	0.0010355	2.408	0.4153	374425.52	2657780.6	2283355.1
0.080	588.4	92.99	0.0010381	2.124	0.4708	389288.66	2663642.1	2274353.5
0.090	662.0	96.18	0.0010405	1.903	0.5255	402728.29	2668666.3	2265938.1
0.10	735.6	99.09	0.0010428	1.725	0.5797	414995.61	2673271.8	2258276.2
0.12	0.2	104.25	0.0010468	1.454	0.6878	436766.97	2681226.7	2244459.8
0.14	0.4	108.74	0.0010505	1.259	0.7943	455775.04	26888344.2	2232569.2
0.16	0.6	112.73	0.0010538	1.110	0.9009	472647.85	2694205.8	2221558
0.18	0.8	116.33	0.0010570	0.9953	1.004	487887.8	2699648.6	2211760.8
0.20	1.0	119.62	0.0010600	0.9018	1.109	501829.84	2704672.8	2202843
0.22	1.2	122.64	0.0010627	0.8249	1.212	514641.45	2708859.6	2194218.2
0.24	1.4	125.46	0.0010653	0.7603	1.315	526866.91	2713046.4	2186179.5
0.26	1.6	128.08	0.0010679	0.7054	1.418	537794.46	2716814.5	2179020.1
0.28	1.8	130.55	0.0010702	0.6581	1.519	548387.06	2720163.9	2171776.9
0.30	2.0	132.88	0.0010725	0.6170	1.621	558351.64	2723513.4	2165161.8
0.32	2.2	135.08	0.0010747	0.5806	1.722	567771.94	2726444.1	2158672.2
0.34	2.4	137.18	0.0010768	0.5484	1.823	576773.56	2729374.9	2152601.4
0.36	2.6	139.18	0.0010789	0.5198	1.924	585314.64	2731887	2146572.4
0.38	2.8	141.09	0.0010809	0.4941	2.024	593478.9	2734399	2140920.1
0.40	3.0	142.92	0.0010828	0.4709	2.124	601350.08	2736911.1	2135561.1
0.42	3.2	144.58	0.0010847	0.4498	2.223	608970.06	2739004.5	2130034.5
0.44	3.4	146.38	0.0010865	0.4306	2.322	616338.82	2741097.9	2124759.1
0.46	3.6	148.01	0.0010884	0.4130	2.421	623372.65	2743191.3	2119818.7
0.48	3.8	149.59	0.0010901	0.3968	2.520	630071.53	2745284.7	2115213.2
0.50	4.0	151.11	0.0010918	0.3818	2.619	636561.07	2746959.4	2110398.4
0.52	4.2	152.59	0.0010935	0.3680	2.717	643008.74	2748634.2	2105625.5
0.54	4.4	154.02	0.0010951	0.3551	2.816	649163.34	2750308.9	2101145.6
0.56	4.6	155.41	0.0010967	0.3431	2.914	655150.46	2751983.6	2096833.2
0.58	4.8	156.76	0.0010983	0.3320	3.012	661011.98	2753658.3	2092646.4
0.60	5.0	158.08	0.0010998	0.3215	3.110	666747.9	2755333	2088585.1
0.62	5.2	159.36	0.0011013	0.3117	3.208	672400.08	2756589.1	2084189.0
0.64	5.4	160.61	0.0011028	0.3025	3.301	677842.92	2757845.1	2080002.2
0.66	5.6	161.82	0.0011042	0.2938	3.404	683118.28	2759519.8	2076401.6
0.68	5.8	163.01	0.0011056	0.2857	3.500	688351.78	2760775.9	2072424.2
0.70	6.0	164.17	0.0011070	0.2779	3.598	693334.08	2762031.9	2068697.9
0.72	6.2	165.31	0.0011084	0.2706	3.695	698358.24	2763288	2064929.8
0.74	6.4	166.42	0.0011098	0.2638	3.791	703131.19	2764125.3	2064994.2
0.76	6.6	167.50	0.0011111	0.2571	3.890	707778.54	2765381.4	2057602.9
0.78	6.8	168.57	0.0011125	0.2509	3.986	712467.75	2766637.4	2054169.7
0.80	7.0	169.61	0.0011139	0.2449	4.083	717031.36	2767474.8	2050443.5
0.82	7.2	170.63	0.0011152	0.2393	4.179	721469.37	2768730.8	2047261.5
0.84	7.4	171.63	0.0011165	0.2338	4.277	725991.12	2769568.2	2043577.1
0.86	7.6	172.62	0.0011177	0.2288	4.371	730303.52	2770824.2	2040520.7
0.88	7.8	173.58	0.0011189	0.2239	4.466	734532.19	2771661.6	2037129.5
0.90	8.0	174.53	0.0011202	0.2191	4.564	738760.86	2772498.9	2033738.1
0.92	8.2	175.47	0.0011215	0.2145	4.665	742863.92	2773336.3	2030472.4
0.94	8.4	176.38	0.0011227	0.2102	4.757	746841.38	2774173.6	2027332.3
0.96	8.6	177.28	0.0011238	0.2060	4.854	750776.97	2775011	2024234.1
0.98	8.8	178.17	0.0011250	0.2020	4.951	754670.7	2775848.4	2021177.7
1.00	9.0	179.04	0.0011262	0.1981	5.048	758606.29	2776685.7	2018079.5
1.1	10	183.20	0.0011318	0.1806	5.537	776860.74	2780453.8	2003593.1
1.2	11	187.08	0.0011373	0.1662	6.017	794110.35	2783384.6	1989274.3
1.3	12	190.71	0.0011425	0.1540	6.494	810271.4	2786315.4	1976044
1.4	13	194.13	0.0011476	0.1436	6.964	825553.22	2788827.4	1963274.2
1.5	14	197.36	0.0011524	0.1344	7.440	839997.68	2790920.8	1950923.3
1.6	15	200.43	0.0011571	0.1263	7.918	853939.72	2793014.2	1939074.5
1.7	16	203.36	0.0011618	0.1190	8.403	867086.28	2794689	1927602.8
1.8	17	206.16	0.0011662	0.1126	8.881	879814.15	2796363.7	1916549.6
1.9	18	208.82	0.0011706	0.1067	9.372	891955.87	2797619.7	1905663.9
2.0	19	211.38	0.0011749	0.1015	9.852	903595.17	2798875.8	1895280.7
2.1	20	213.85	0.0011791	0.09681	10.329	914941.4	2799713.1	1884771.7
2.2	21	216.23	0.0011832	0.09249	10.812	925785.201	2800550.5	1874765.3
2.3	22	218.53	0.0011873	0.08854	11.294	936377.82	2801387.8	1865010
2.4	23	220.75	0.0011914	0.08490	11.778	946761.08	2802225.2	1855464.2
2.5	24	222.90	0.0011953	0.08153	12.265	956767.53	2802643.9	1845876.4
2.6	25	224.98	0.0011992	0.07842	12.750	966397.17	2803062.6	1836665.5
2.7	26	227.01	0.0012030	0.07556	13.235	975943.08	2803481.2	1827538.2
2.8	27	228.97	0.0012067	0.07285	13.727	985028.43	2803899.9	1818871.5
2.9	28	230.89	0.0012104	0.07036	14.212	994071.92	2803899.9	1809828
3.0	29	232.73	0.0012141	0.06800	14.706	1002780.4	2803899.9	1801119.5
3.1	30	234.57	0.0012178	0.06580	15.198	1010107.3	2803899.9	1793792.6
3.2	31	236.34	0.0012215	0.06373	15.691	1020113.8	2803899.9	1783786.1
3.3	32	238.07	0.0012251	0.06178	16.186	1027859.4	2803899.9	1776040.5
3.4	33	239.76	0.0012286	0.05994	16.683	1036233.3	2803899.9	1767666.6
3.5	34	241.41	0.0012321	0.05822	17.176	1043978.5	2803481.2	1759493.7
3.6	35	243.03	0.0012356	0.05658	17.674	1051724.1	2803062.6	1751338.5
3.7	36	244.61	0.0012390	0.05502	18.175	1059302.2	2803062.6	1743760.4
3.8	37	246.16	0.0012425	0.05354	18.678	1066671	2802643.9	1735972.9
3.9	38	247.68	0.0012458	0.05213	19.183	1073914.2	2802225.2	1728311
4.0	39	249.17	0.0012492	0.05079	15.689	1081241.1	2801806.5	1720565.4
4.2	41	252.07	0.0012560	0.04830	20.704	1095434.3	2800550.5	1705116.2
4.4	43	254.85	0.0012626	0.04603	21.725	1109208.9	2799713.1	1690504.2
4.6	45	257.56	0.0012693	0.04394	22.758	1122397.3	2798038.4	1675641.1
4.8	47	260.17	0.0012760	0.04202	23.798	1135292.6	2796782.4	1661489.8
5.0	48	262.70	0.0012826	0.04026	24.839	1147811.2	2795107.6	1647296.4
5.5	54	268.69	0.0012896	0.03640	27.473	1178039.9	2794689	1616649.1
6.0	59	274.29	0.0013147	0.03312	30.273	1206802.2	2790502.2	1583699
6.5	64	279.54	0.0013306	0.03036	32.938	1233975.5	2779616.5	1545641
7.0	69	284.48	0.0013664	0.02795	35.778	1259933.7	2773336.3	1513402.6
7.5	74	289.17	0.0013625	0.02587	38.655	1284970.7	2766637.4	1481666.7
8.0	79	293.62	0.0013786	0.02404	41.597	1309003	2759519.8	1450516.8
8.5	84	297.86	0.0013950	0.02242	44.603	1331821	2751983.6	1420162.6
9.0	89	301.91	0.0014114	0.02095	47.733	1354471.6	2744028.7	1389557.1
9.5	94	305.80	0.0014283	0.01964	50.916	1376326.7	2735655.1	1359328.4
10.0	99	309.53	0.0014452	0.01845	54.201	1397721.3	27726862.8	1329141.5
10.5	104	313.11	0.0014623	0.01739	57.504	1418487.8	2718070.5	1299591.7
11.0	109	316.57	0.0014801	0.01640	60.976	1438668.2	2708859.6	1270191.4
11.5	114	319.90	0.0014987	0.01549	64.558	1459183.5	2698811.2	1239627.7
12.0	119	323.14	0.0015176	0.01465	68.260	1479782.5	2688762.9	1208980.4
13.0	129	329.29	0.0015568	0.01315	76.047	1519096.6	2666991.6	1147895
14.0	139	335.08	0.0015994	0.01185	84.390	1558368.8	2643964.2	1085595.4
15.0	149	340.55	0.0016461	0.01068	93.634	1597682.8	2618424.7	1020741.9
16.0	159	345.74	0.0016975	0.00963	103.84	1637876.1	2590791.8	952915.7
17.0	169	350.66	0.001755	0.00869	115.07	1677232	2559390.8	882158.8
18.0	179	355.35	0.001820	0.00780	128.21	1681418.8	2523803	842384.2
19.0	189	359.82	0.001903	0.00697	143.5	1764317.5	2484028.4	719710.9
20.0	199	364.09	0.002004	0.00616	162.3	1812884.4	2436717.6	623833.2
21.0	209	368.16	0.002141	0.00537	186.2	1867731.4	2377265	509533.6
22.0	219	372.04	0.002385	0.00449	222.7	1943931.2	2294785	350853.8
22.565	224.65	374.15	0.00318	0.00318	314.5	2116846	2116846	0
